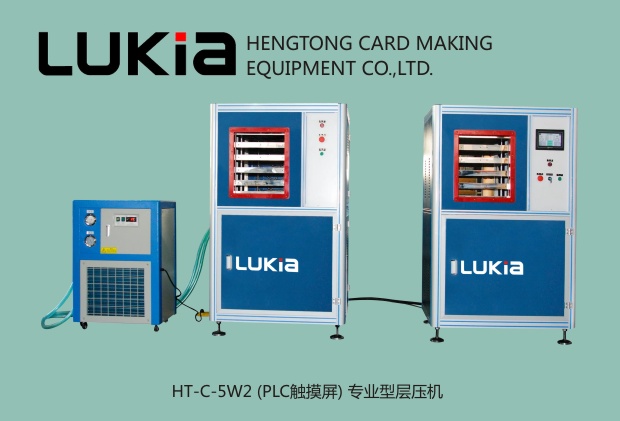

HT-C-5W2 (PLC觸摸屏) 專業型層壓機是針對專業廠家生產RFID，IC，ID芯片層壓而開發的高性能設備。有效控制生產過程中廢品率、難以操作等難題。也是為配套制作二代身份證等高檔證件卡、銀行卡、公交一卡通、高速公路、社保卡等專業制作卡片的公司、卡廠開發的專業PVC智能卡層壓機。

特點：

1、簡單直觀人機界面，操作方便。

2、低壓油路系統，安全、壓力均衡，液壓系統噪音低、振動小。

3、采用進口PLC控制系統，觸摸屏界面。

4、工作穩定，自動提示。

5、外配冷水機，確保卡的定形和卡的亮度。

6、多級壓力選擇，確保卡的粘合力。

7、溫度及壓力、時間設定調整。

8、按鈕和觸摸雙重開關確保安全工作。

9、適用于各類卡片、RFID電子標簽，非接觸式卡IC卡、ID卡。

HTCL-C-5W2-A3 RFID Contact less Smart Card Laminating Machine

is designed for laminating various RFID cards and electronic labels

as well as inlay. It features hydraulic pressing, electric heating, water

cooling and PLC controlled. The dual-tower structure is well compact

and rigid. The pressure releasing spring is applied between the top

template and upper beam to realize slight contact. The temperature

for heating and the pressures for cool and heat lamination are

controlled through the fully-closed loop. The temperature is evenly

distributed and the control of pressure is accurate.

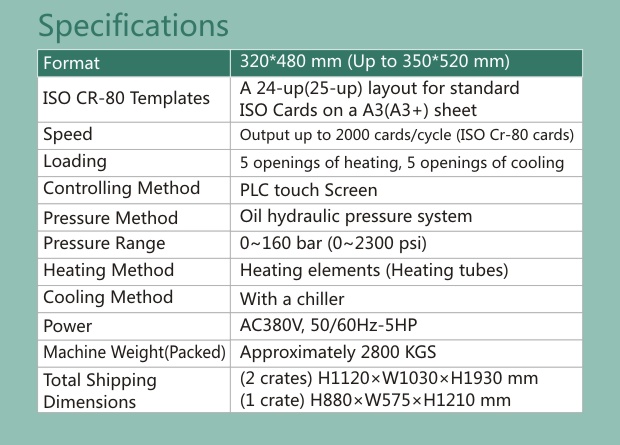

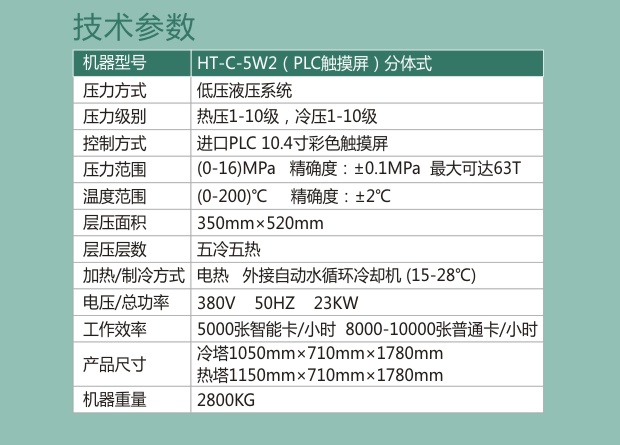

The control precision of temperature is as ±1℃ and the control

precision of pressures are as ±0.3MPa.

In order to meet the special lamination demands of high-end cards,

the process of hot template rising can be set Into 1 to 5 sections as

per specific technological requirements and the time for staying at

each section can be flexibly set. Hot lamination has 8 grades and

cool lamination has 4 grades. The interface of man-machine dialogue

adopts a touch screen which is simple and direct.
